前MS2130丨2131时代的USB3.0采集卡长啥样？VS2828+9989拆机

额……老铁们，我老捡国产芯片垃圾的了。

今天简单继续更新一个采集卡的拆机，侧面验证一下论国产芯片的重要性

视频：前MS2130丨2131时代的USB3.0采集卡什么样？150块钱的ACASIS USB3.0采集卡开箱拆机（VS2828+9989）

这款视频采集卡其实咱买了很多年了，但是一直没用上

原因也简单，当年买的时候是在是太贵了，鱼上无原盒二手还要150，根本舍不得用

而且咱当时用采集卡的需求虽然有但是实际上设备跟不上，不少机器都没有带视频编码器的显卡，USB3.0还是靠PCIE转的，所以采集卡的作用就只是个HDMI转USB，那当时的MS2109就已经够用了完全没必要用这个很贵的采集卡（当时基于MS2109的假USB3.0采集卡也就30多块钱包邮虽然没有音频但是也大量用得起）。

如今咱的MS2130已经标配上了4K固件大批量实装了用很长时间，MS2131环出采集卡也有了，甚至MS2130S都已经上手了才想起来有这玩意，也算是终于有机会可以拆机看看情况顺带和国产方案进行对比了

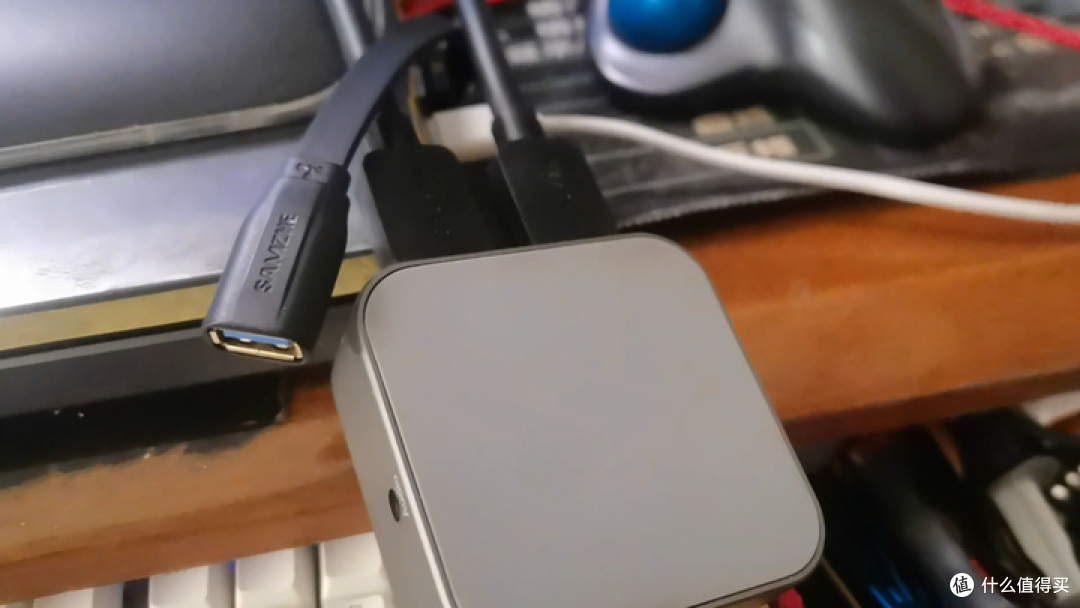

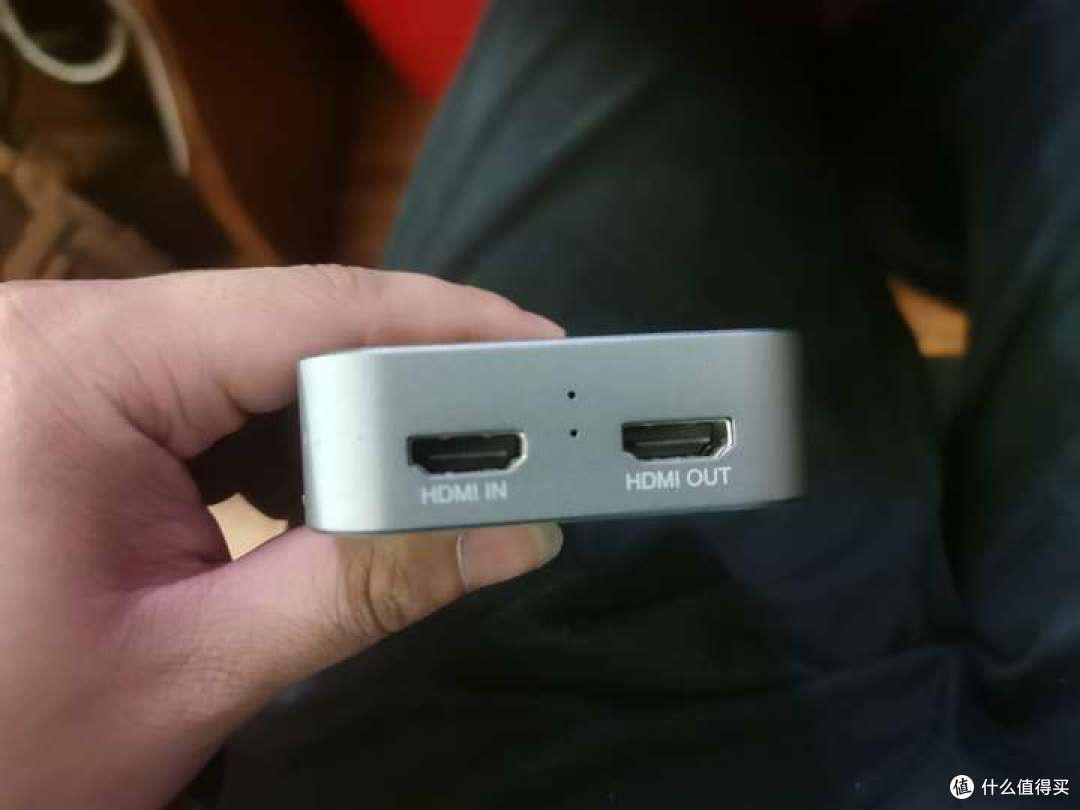

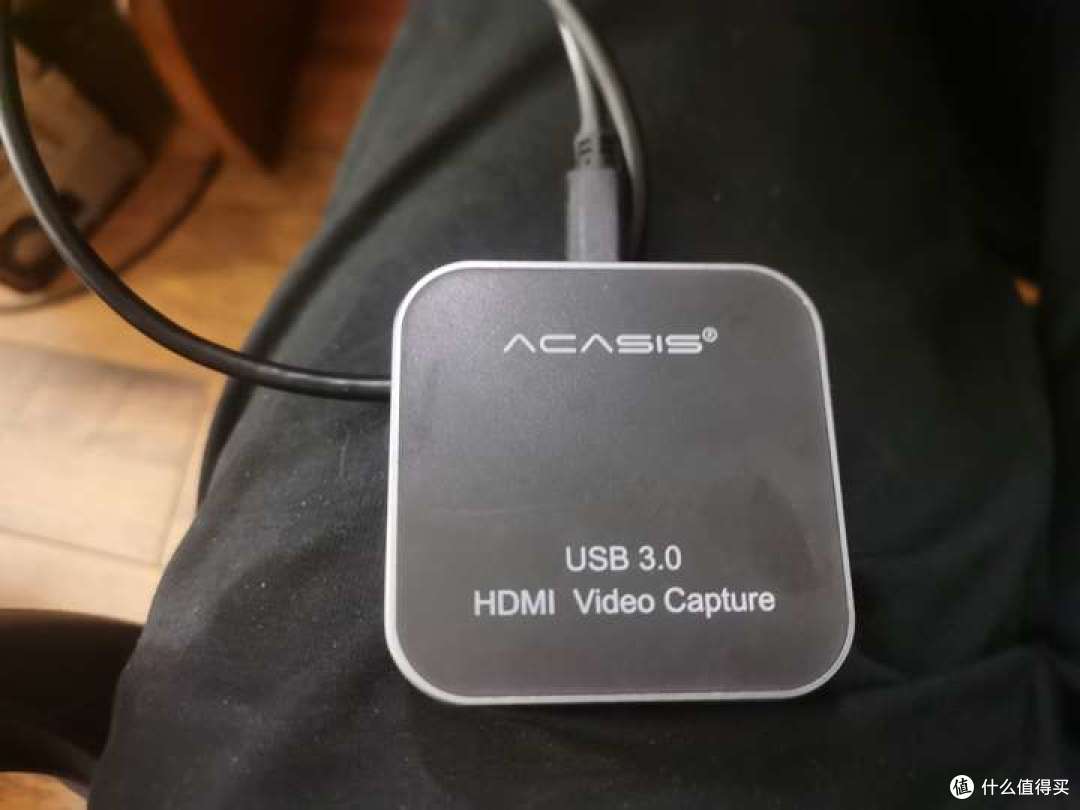

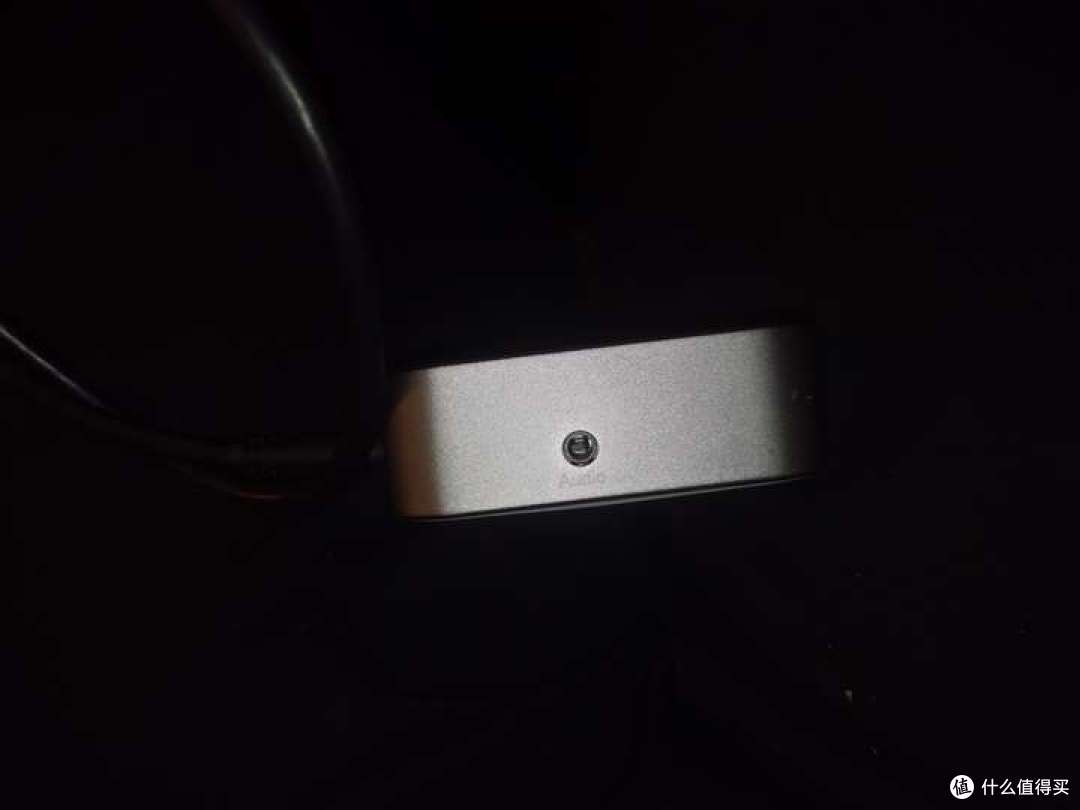

这款采集卡整体来说做工还行，铝合金外框，HDMI环出，有一路音频不知道是输入还是输出（试了下发现有输出功能），USB3.0协议的typeC接口数据兼供电。

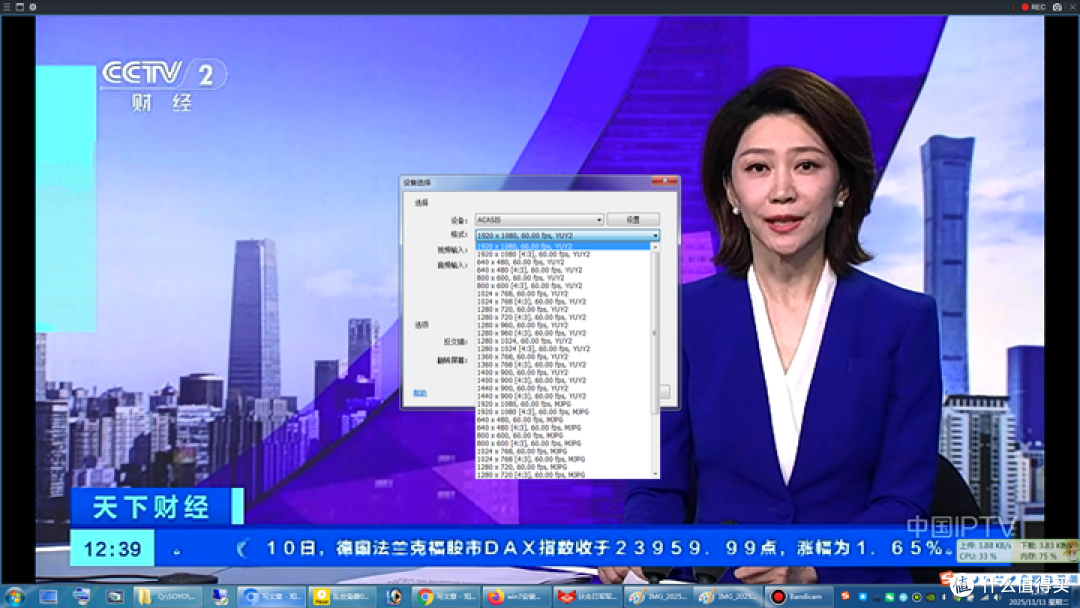

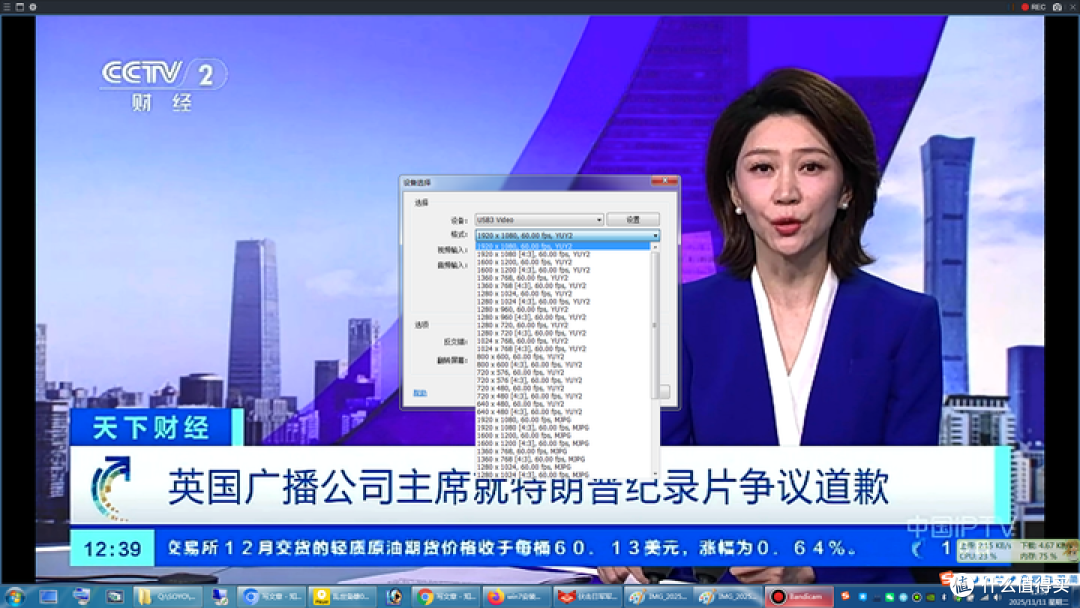

实际上使用起来和MS2131感觉效果差不多

然后是拆机

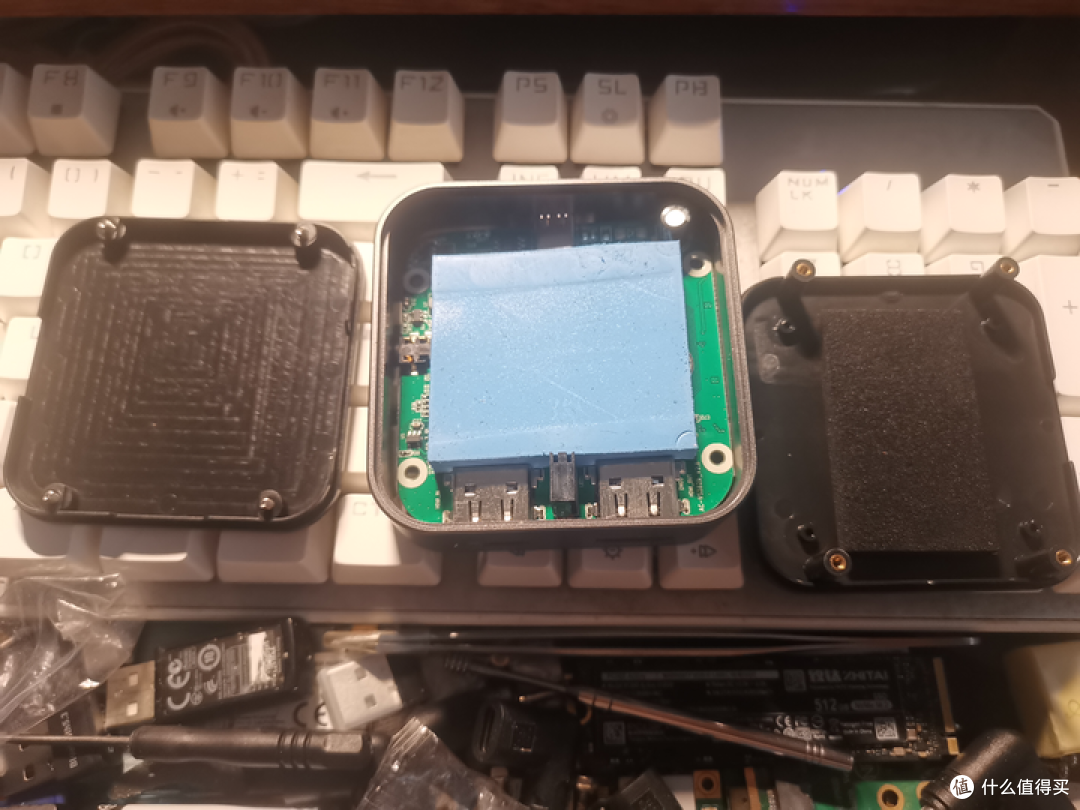

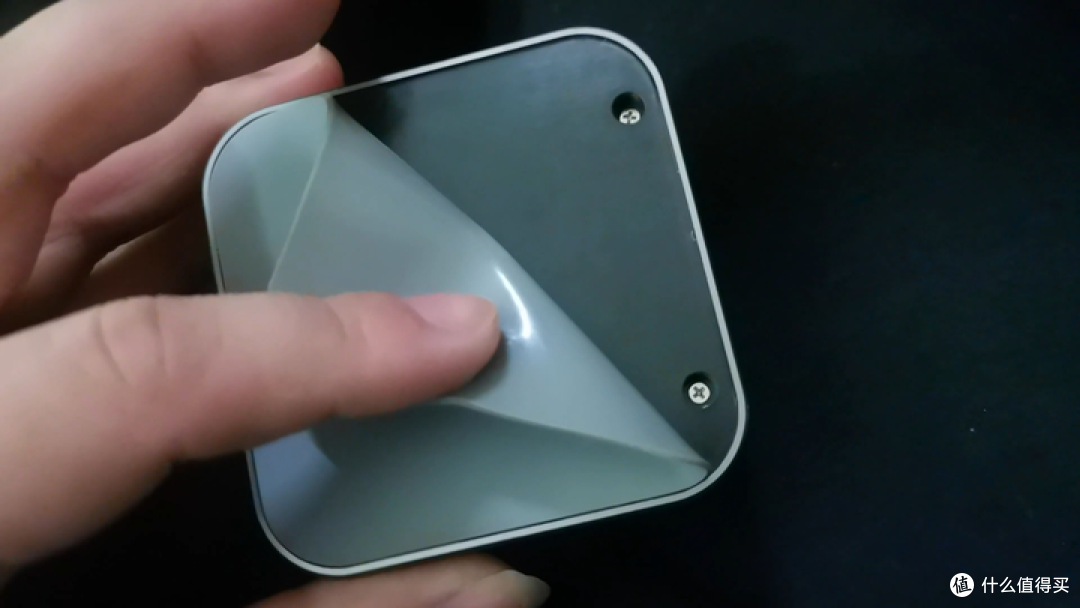

这款拆起来相对比较简单，胶垫下四个螺丝，然后直接就能把塑料上下盖拆下来

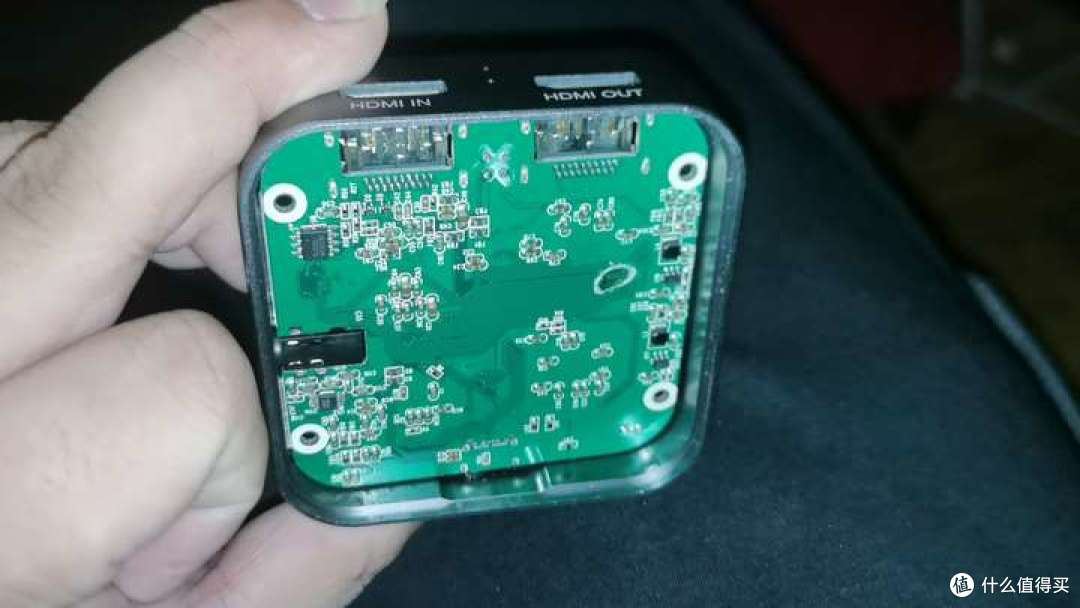

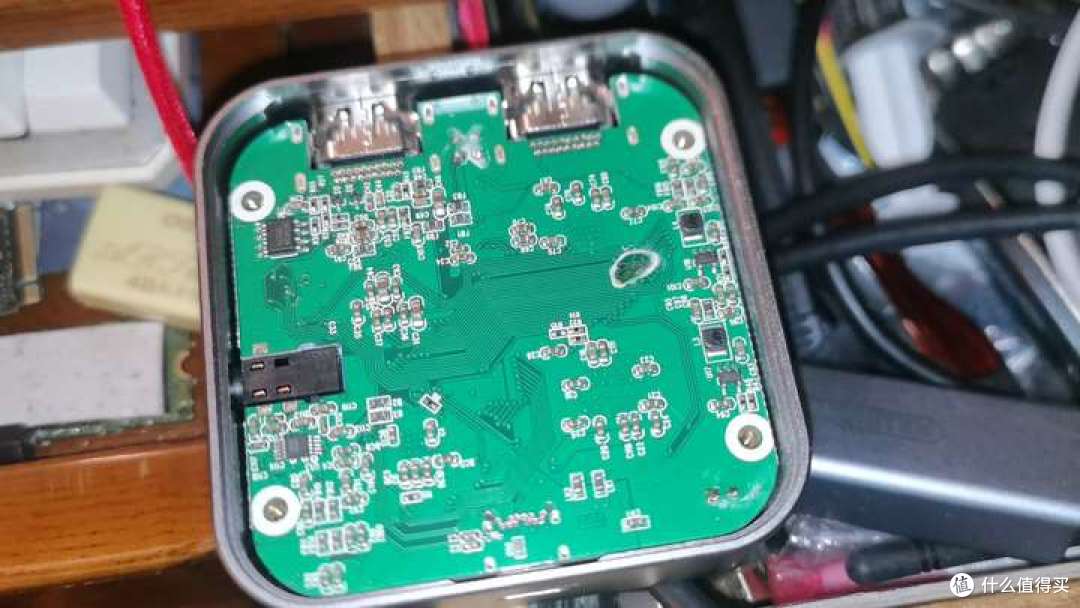

然后看到的是板子的背面

HE24C08

HuaHong ZealCore

8K bits eeprom

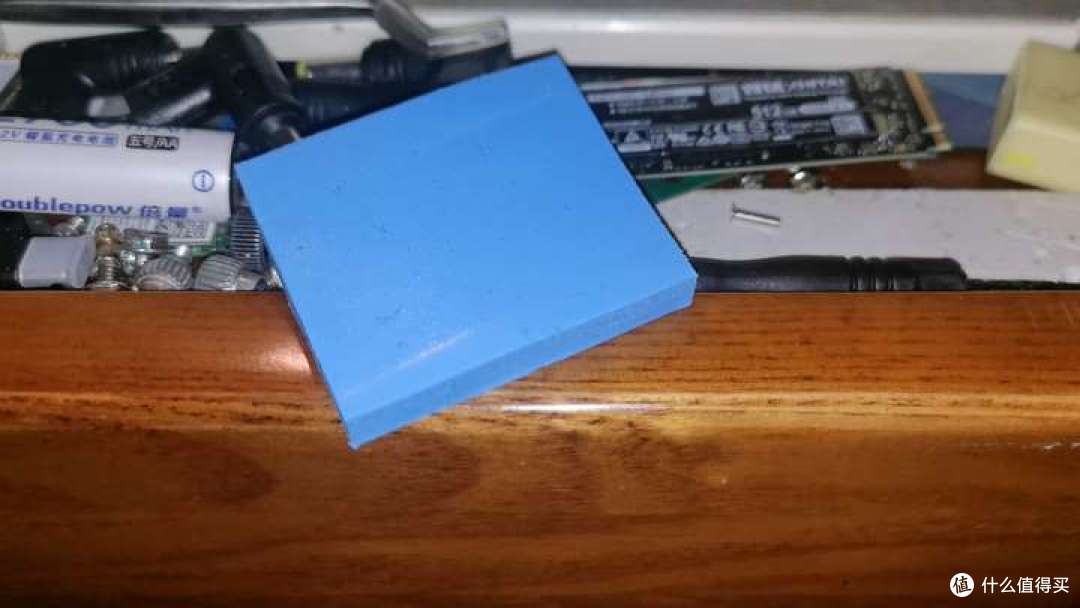

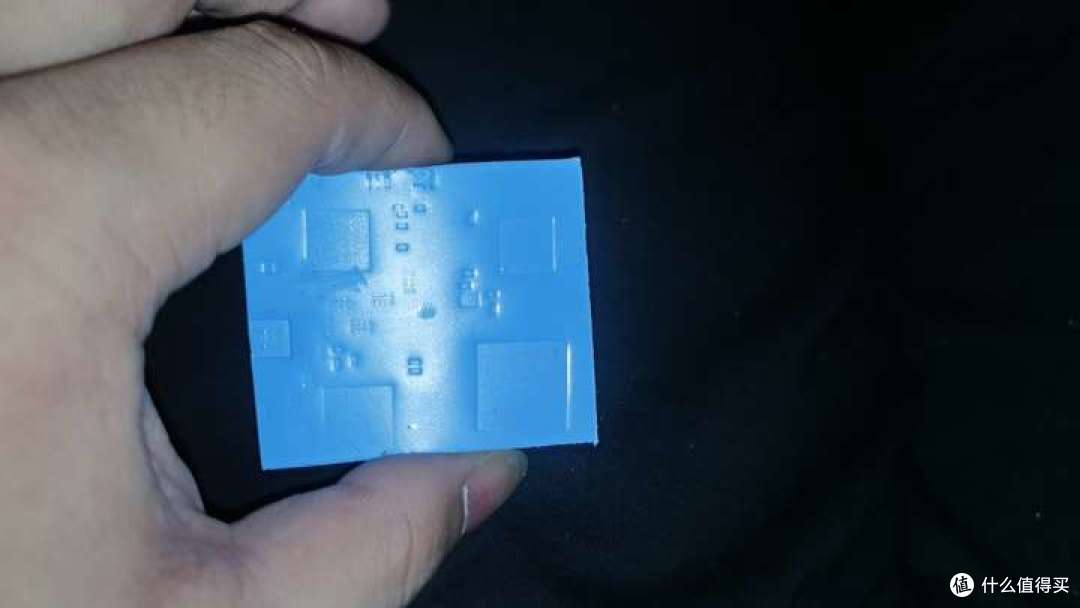

然后正面板子上有个很大的硅胶垫，看得出来这玩意发热应该相当不低

然而顶盖是塑料的，所以这玩意散热应该全靠中框

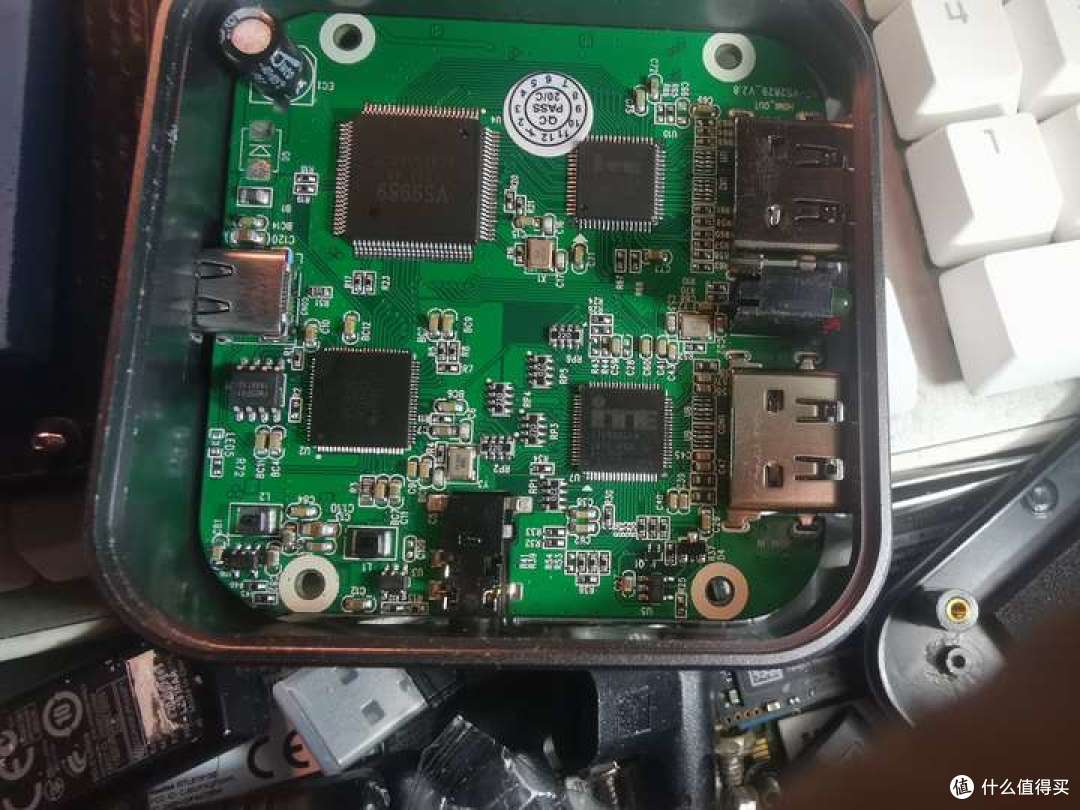

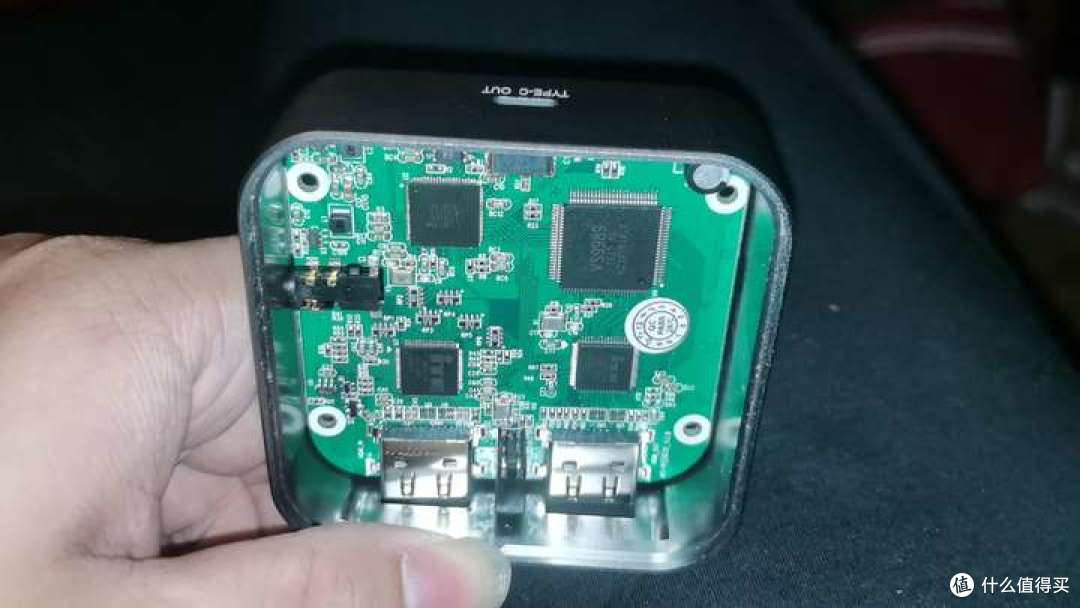

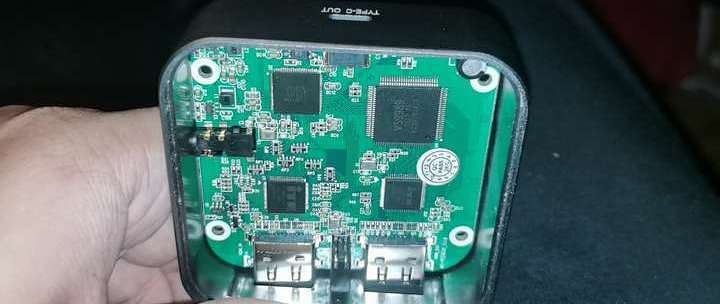

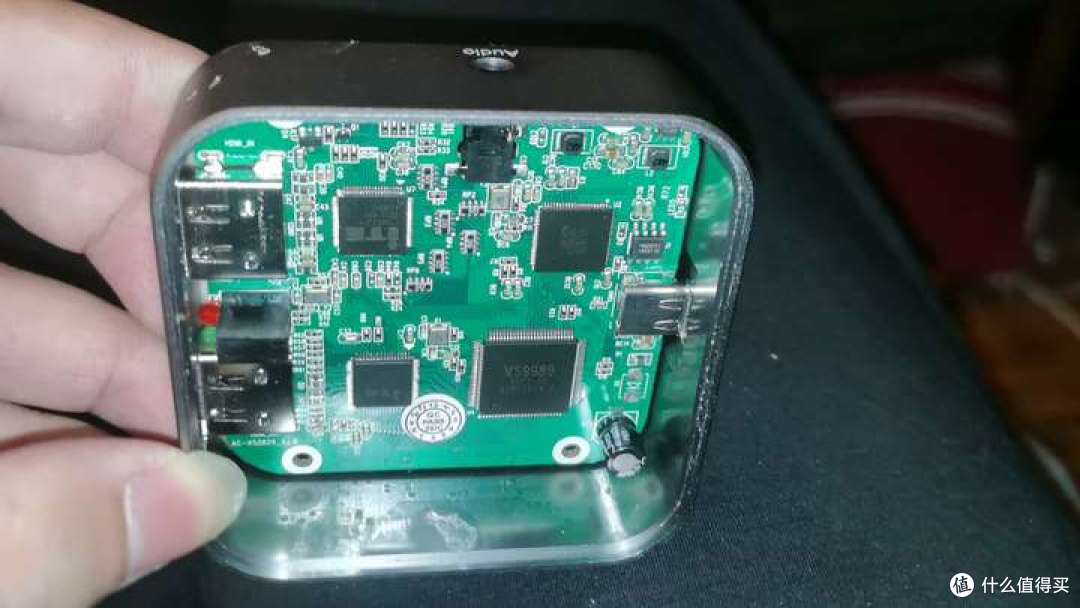

然后这玩意正面有四个主要IC组成

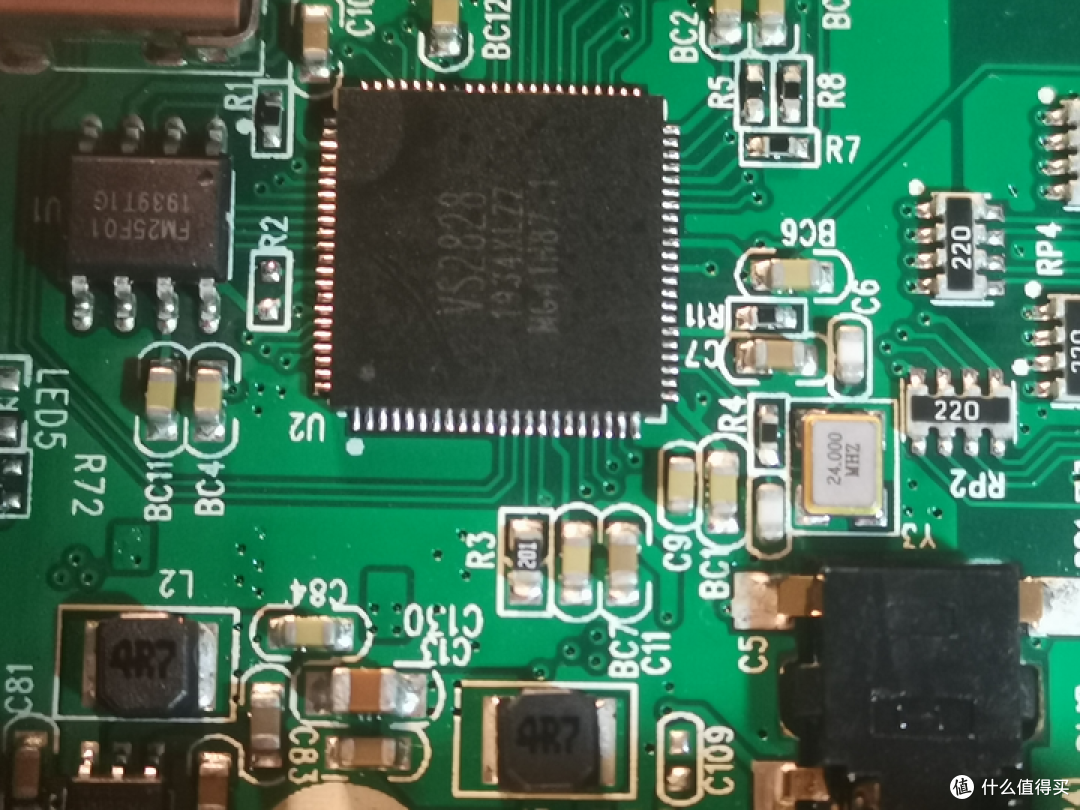

VS9989+VS2828

台湾视传科技

19年33/34周生产

内嵌SDRAM

支持1080P YUV2+HDMI环出

其实和MS2131是完全一样的水平

只不过生产日期早，所以能卖这个价格

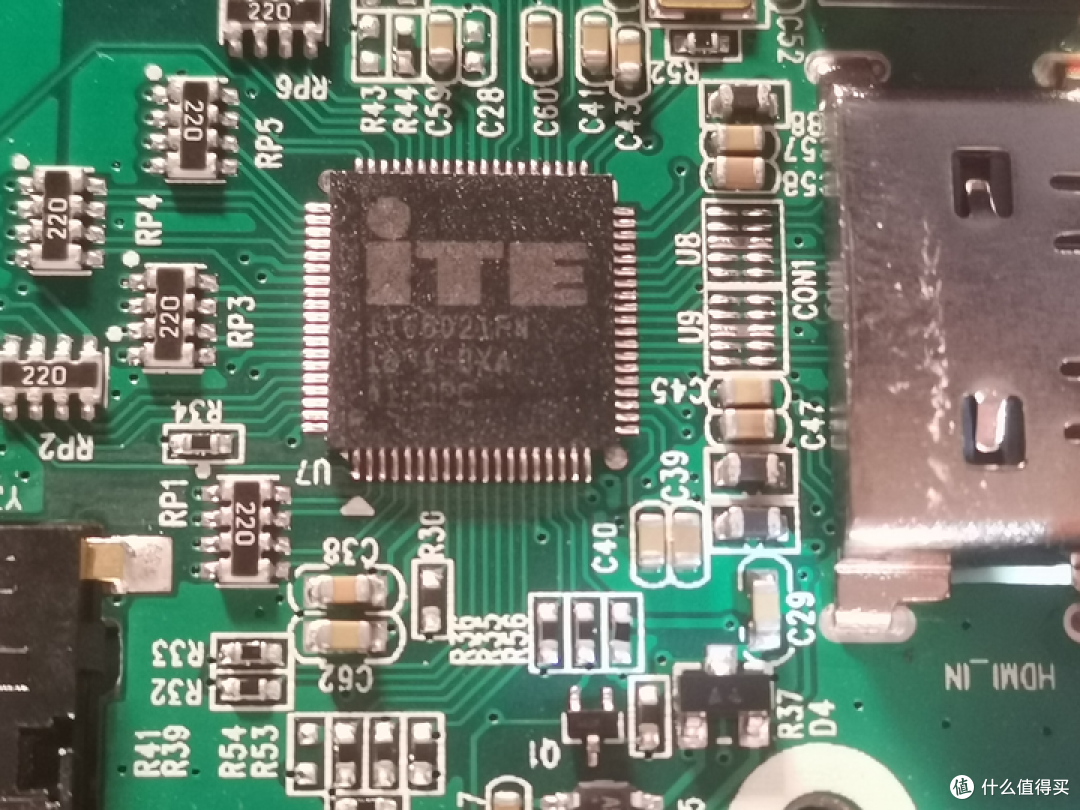

ITE联阳

IT66021FW

IT66121FW

IT66021FN: Single-port HDMI 1.4 Receiver with 3D Support

The IT66021FN is a single-port HDMI receiver, which is fully compatible with HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, and also backward compatible with DVI 1.0 specifications. With its Deep Color capability (up to 36-bit), the IT66021FN ensures robust reception of high-quality uncompressed video content. The IT66021FN also supports all the primary 3D formats which are compliant with the HDMI 1.4b 3D specification.

Aside from the various video output formats supported, the IT66021FN also receives and provides up to 4 channels of I2S digital audio outputs, with sampling rate of up to 192 kHz and sample size of up to 24 bits, facilitating direct connection to industry-standard low-cost audio DACs. Also, an S/PDIF output is provided to support up to compressed audio of 192 kHz frame rate.

Each IT66021FN comes preprogrammed with a unique HDCP key, in compliance with the HDCP 1.4 standard so as to provide secure transmission of high-definition content. Users of the IT66021FN need not purchase any HDCP keys or ROMs.

Features

Single channel HDMI transmitter

Compliant with HDMI 1.3a, HDCP 1.2 and DVI 1.0 specifications

Supporting pixel rates from 25MHz to 165MHz

DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p

PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA

Various video input interface supporting digital video standards such as:

24-bit RGB/YCbCr 4:4:4 with RB swap option

16/20/24-bit YCbCr 4:2:2 with YC swap option

8/10/12-bit YCbCr 4:2:2 (CCIR-656)

BTA-T1004 format

DE-only interface

DDR option

Support HDMI1.4 3D feature

Frame packing mode up to 1080P@23.98/24Hz and 720P@59.94/60Hz

Top and Bottom up to 1080P@59.94/60Hz

Side-by-Side (Half) up to 1080P@59.94/60Hz

Side-by-Side (Full) up to 720P@59.94/60Hz

Bi-direction Color Space Conversion (CSC) between RGB and YCbCr color spaces with

programmable coefficients.

Digital audio input interface supporting

audio sample rate: 32~192 kHz

sample size: 16~24 bits

four I2S interfaces supporting 8-channel audio

S/PDIF interface supporting PCM, Dolby Digital, DTS digital audio transmission at up to

192kHz

Support for high-bit-rate (HBR) audio such as DTS-HD and Dolby TrueHD through the four I2S

interface or the S/PDIF interface, with frame rates as high as 768kHz

Compatible with IEC 60958 and IEC 61937

Software programmable HDMI output current, enabling user to optimize the performance for

fixed-cable systems or those with pre-defined cable length

MCLK input is optional for audio operation. Users could opt to implement audio input interface with

or without MCLK.

Integrated pre-programmed HDCP keys

Purely hardware HDCP engine increasing the robustness and security of HDCP operation

Monitor detection through Hot Plug Detection and Receiver Termination Detection

Embedded full-function pattern generator

Intelligent, programmable power management

Embedded hardware controlled CEC PHY

Ultra low power consumption, operation power is less than 70mw at 1080p@60Hz format.

64-pin (9x9 mm) QFN package

IT66121FN Low Power Transmitter with HDMI1.4 3D

The IT66121 is a high-performance and low-power single channel HDMI transmitter, fully compliant with HDMI 1.3a, HDCP 1.2 and backward compatible to DVI 1.0 specifications. IT66121 also provide the HDMI1.4 3D feature, which enables direct 3D displays through an HDMI link. The IT66121 serves to provide the most cost-effective HDMI solution for DTV-ready consumer electronics such as set-top boxes, DVD players and A/V receivers, as well as DTV-enriched PC products such as notebooks and desktops, without compromising the performance. Its backward compatibility to DVI standard allows connectivity to myriad video displays such as LCD and CRT monitors, in addition to the ever-so-flourishing Flat Panel TVs

Features

• Single-port HDMI 1.4b receiver

• Compliant with HDMI 1.4b, HDMI 1.4b 3D, HDCP 1.4 and DVI 1.0 specifications

• Supports link speeds of up to 3.0 Gbps (link clock rate of 300 MHz) for 4K2K or 1080p@120 Hz solution

• Supports all the primary 3D formats which are compliant with the HDMI 1.4b 3D specification

- Supports 3D video up to 1080P@50/59.95/60/120 Hz, 1080P@23.98/24/29.97/30 Hz, 1080i@50/59.94/60 Hz, 720P@23.98/24/29.97/30 Hz, 720P@50/59.94/60 Hz - Supporting formats: Framing Packing, Side-by-Side (half), Top-and-Bottom

• Video output interface supporting digital video standards such as:

- 24-bit RGB/YCbCr 4:4:4 - 16-bit YCbCr 4:2:2 - 8-bit YCbCr 4:2:2 (ITU BT-656) - 24-bit double data rate interface (full bus width, pixel clock rate halved, clocked with both rising and falling edges) - Input channel swap

• Bi-direction Color Space Conversion (CSC) between RGB and YCbCr color spaces with programmable coefficients

• Up/down sampling between YCbCr 4:4:4 and YCbCr 4:2:2

• Dithers for conversion from 12-bit component to 8-bit

• Digital audio output interface supporting:

- up to two I2S interface supporting 4-channel audio, with sample rates of 32~192 kHz and sample sizes of 16~24 bits - S/PDIF interface supporting PCM, Dolby Digital, DTS digital audio at up to 192 kHz frame rate - automatic audio error detection for programmable soft mute, preventing annoying harsh output sound due to audio error or hot-unplug

• Auto-calibrated input termination impedance provides process-, voltage- and temperature-invariant matching to the input transmission lines

• Integrated pre-programmed HDCP keys

• Integrated programmable EDID RAM

• Intelligent, programmable power management

• 76-pin QFN (9 mm x 9 mm) package

• RoHS-compliant and Halogen-Free

IT66021FN是一款单端口HDMI接收器，完全兼容HDMI 1.4b、HDMI 1.4b 3D及HDCP 1.4标准，并向下兼容DVI 1.0规范。凭借其深色技术（最高支持36位），IT66021FN可确保高质量未压缩视频内容的稳定接收。该芯片同时支持所有符合HDMI 1.4b 3D规范的主要3D格式。除支持多种视频输出格式外，IT66021FN还可接收并提供多达4通道的I2S数字音频输出，采样率高达192 kHz，采样尺寸达24位，便于直接连接行业标准的低成本音频DAC。此外，还提供 S/PDIF 输出，支持高达 192 kHz 帧率的压缩音频。每块 IT66021FN 都预编程有唯一的 HDCP 密钥，符合 HDCP 1.4 标准，以确保高清内容的安全传输。IT66021FN 的用户无需购买任何 HDCP 密钥或 ROM。

IT66121FN 低功耗 HDMI1.4 3D 发射器

IT66121 是一款高性能、低功耗的单通道 HDMI 发射器，完全符合 HDMI 1.3a、HDCP 1.2 标准，并向后兼容 DVI 1.0 规范。IT66121还提供HDMI 1.4 3D功能，可通过HDMI链接直接实现3D显示。IT66121为机顶盒、DVD播放器、音视频接收器等支持数字电视的消费电子产品，以及笔记本电脑、台式机等数字电视增强型PC产品提供最具成本效益的HDMI解决方案，且性能毫不妥协。其向下兼容DVI标准的特性，不仅能连接日益普及的平板电视，更能适配LCD和CRT显示器等各类视频设备。

大概就是俩HDMI芯片，说实在的以现在的眼光来看相当落后了，什么玩意HDMI功能还得专门做俩芯片

FM25F01

复旦微电子

1M-BIT SERIAL FLASH MEMORY

基本就这样了，别的没啥好看的了

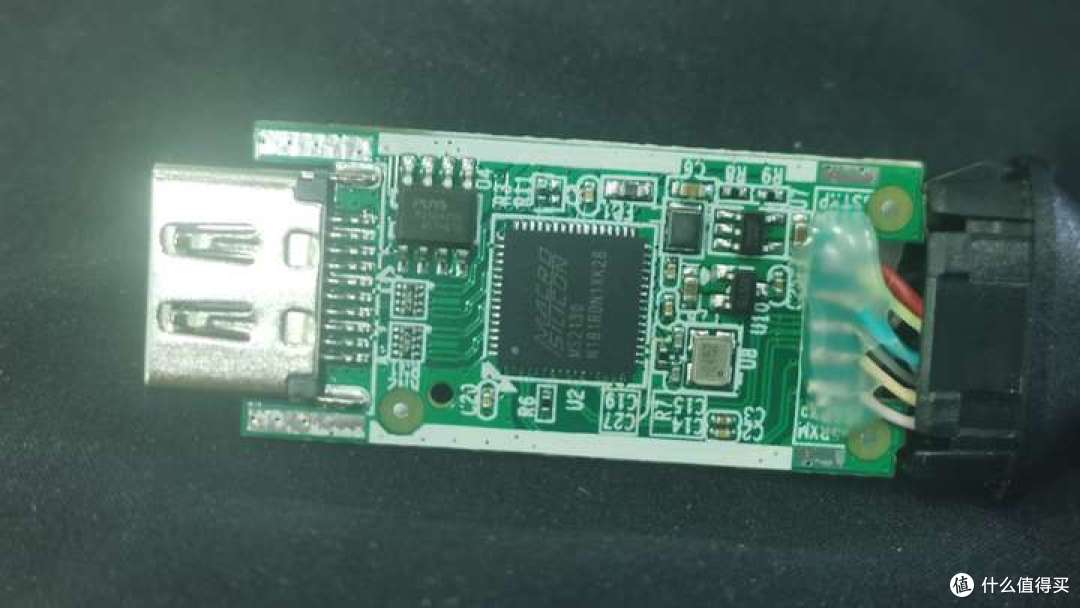

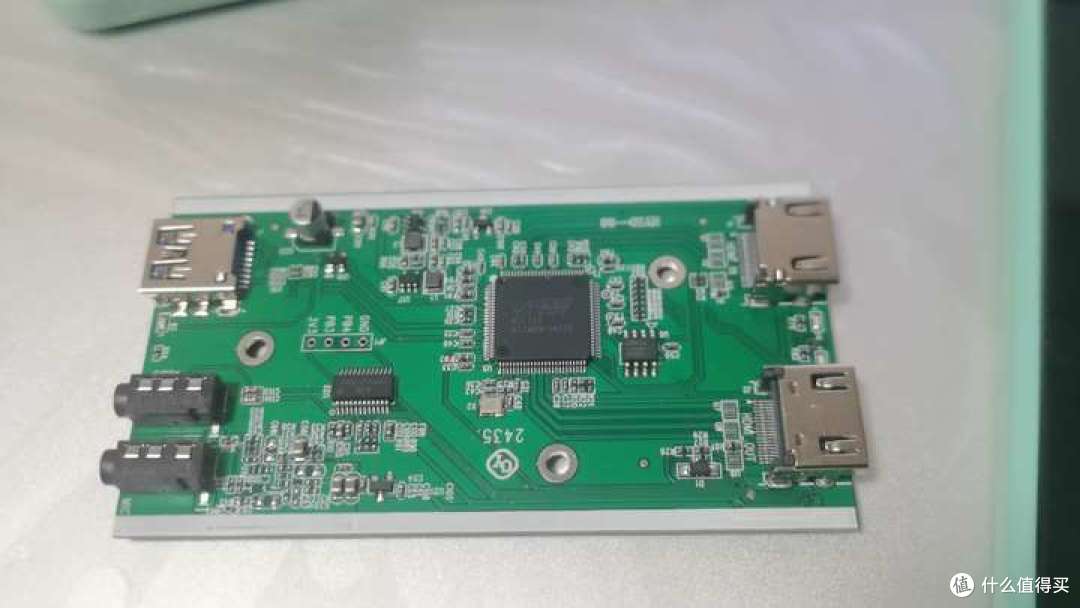

作为对比，简单看下国产芯片MS2131方案采集卡的拆机，PCB背面没芯片所有芯片都在正面

基本上同样的功能就一个芯片就能解决

所以相比原有的台版方案是有技术代差的

芯片集成度的提高能有效地降低电路板设计难度同时降低芯片生产成本提高性价比

包括使用起来功耗方面应该都有明显的优势

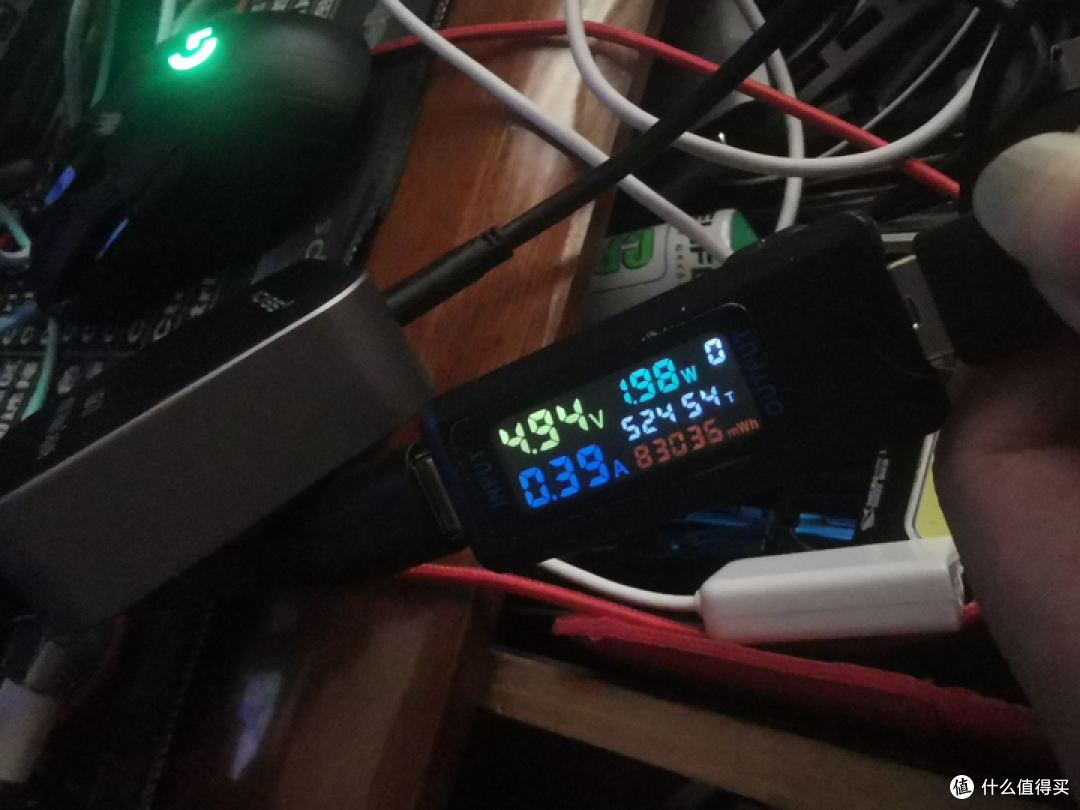

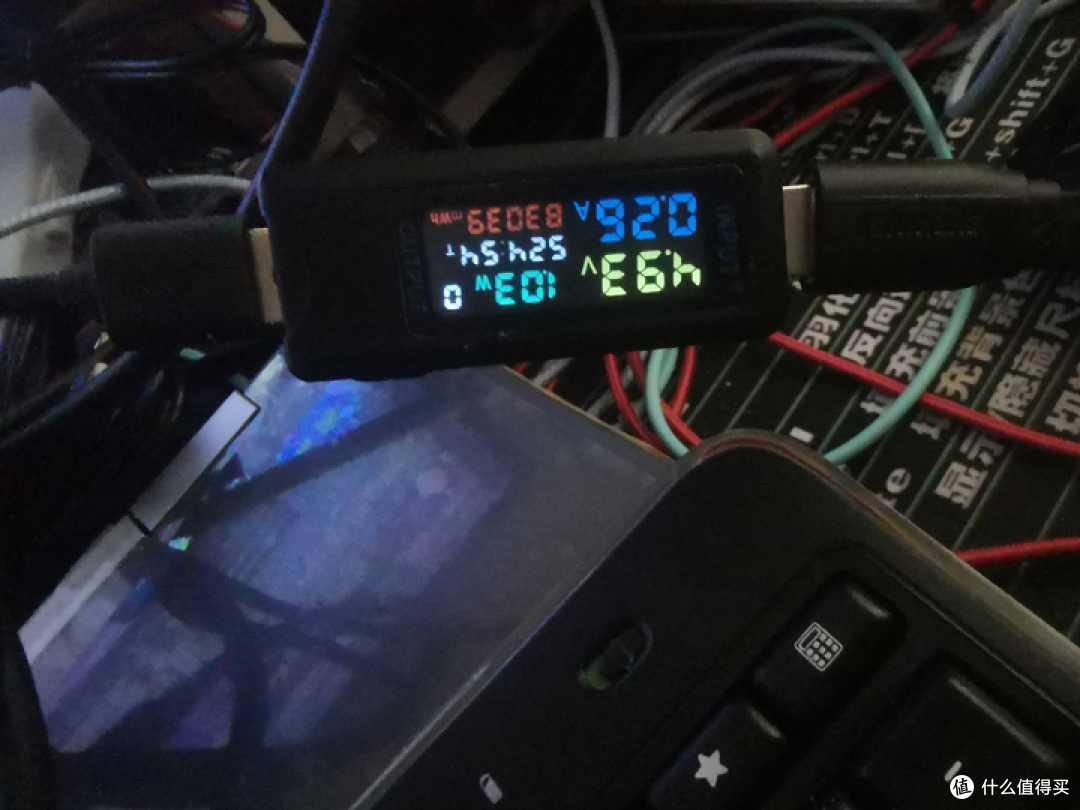

实测了一下MS2131和这款采集卡的功耗，发现雀食是这么回事

国产方案的功耗比台版方案的功耗低了一半左右吧

至于芯片工艺只能说不知道，最近看了几款MCU的DIESHOT才发现现在的这类芯片大概率都是TSMC 40nm或者UMC等其他FAB的同等工艺。可能采集卡也差不多吧，性能够用，成本较低，便宜好用才是硬道理。

需要注意的是芯片的成本和产品的成本也是要平衡的

过于便宜就会导致很多板子为了卷成本会缩ESD

反正芯片不值钱炸了也就炸了

都不值当加钱买带ESD的板子

采集卡这种东西也不会存什么重要数据，炸了顶多也就没采集卡用了不用在关键设备上倒是问题也不大。

所以便宜也没什么毛病。只有垃圾的价格没有垃圾的产品，MS2130雀食便宜好用，也没必要为了保这么一个芯片付出太高的成本，有ESD的2130采集卡价格直接翻倍已经赶上没ESD的2130S了，所以对于咱来说2130S可以加30块钱买个做工好点的2130就没必要把不到30包邮的采集卡换成60的。

就这样，谢谢朋友们！
