悟空M1接入HA最新教程

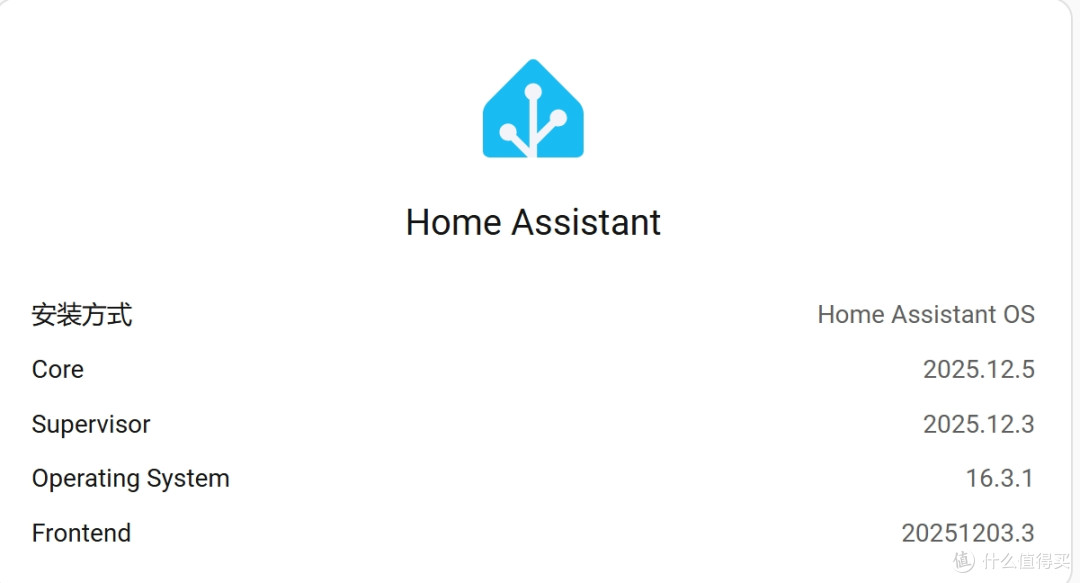

先来看HA的版本

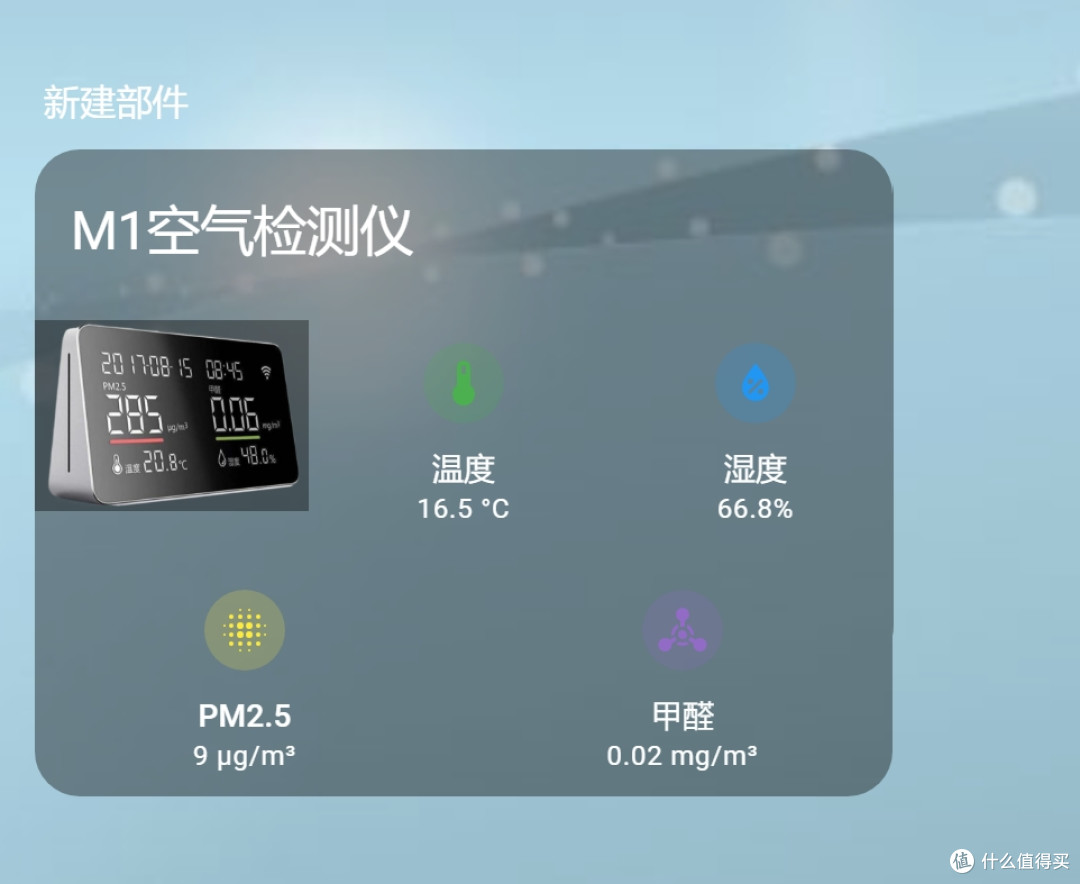

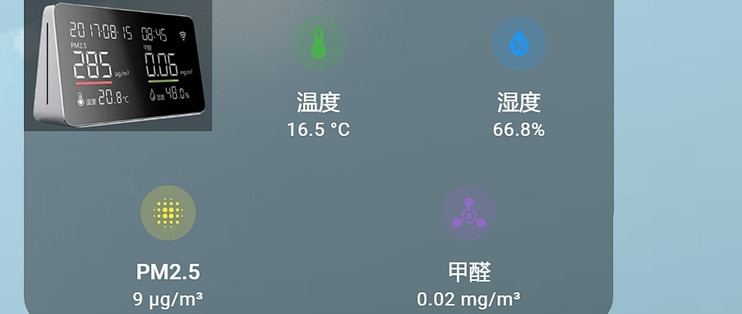

接入效果

具体方法如下：

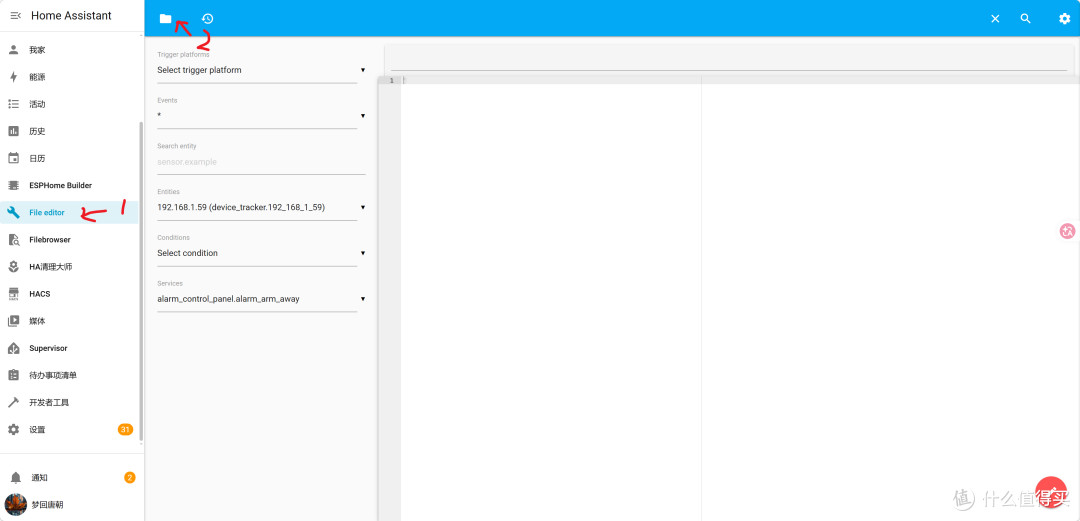

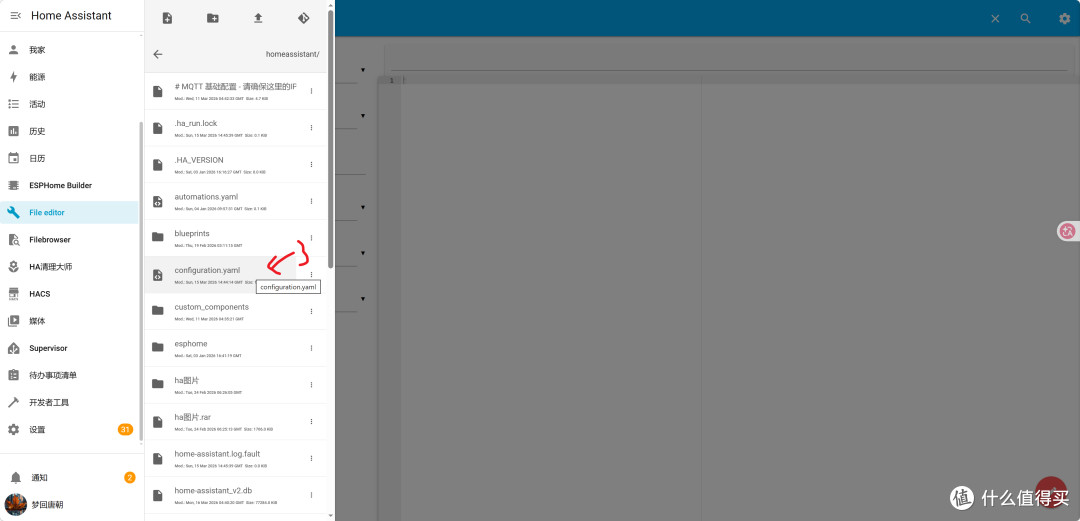

打开home assistant 在左边栏找到文件管理点开他，看到文件夹点开找到里面的配置文件

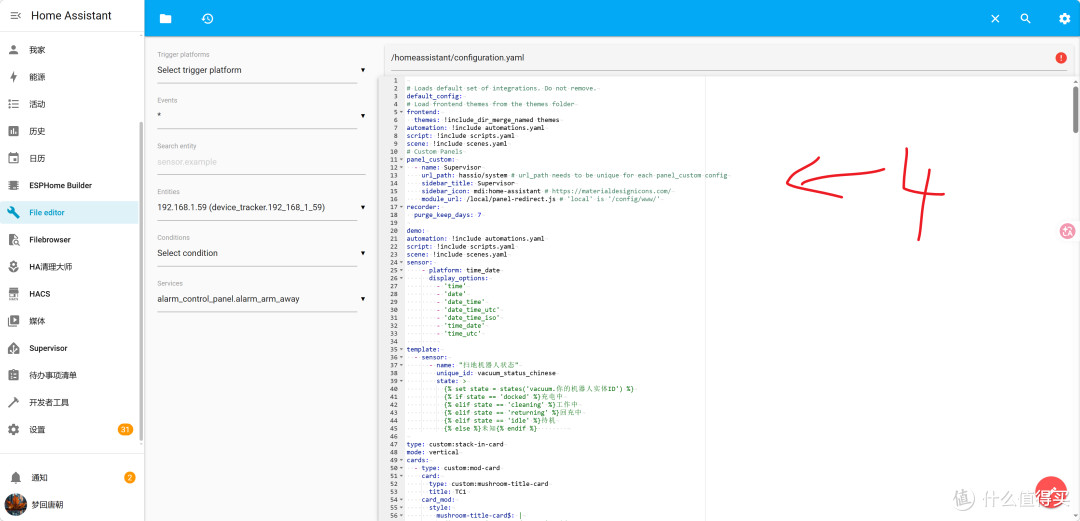

点开配置文件进行编辑 移到最后一行添加如下配置：

mqtt:

# 传感器部分

sensor:

- name: "zm1_你的M1 mac地址_temperature"

state_topic: "device/zm1/你的M1 mac地址/sensor"

unit_of_measurement: "°C"

icon: "mdi:thermometer"

value_template: "{{ value_json.temperature }}"

unique_id: "zm1_你的M1 mac地址_temp" # 推荐添加，确保唯一性

- name: "zm1_你的M1 mac地址_humidity"

state_topic: "device/zm1/你的M1 mac地址/sensor"

unit_of_measurement: "%"

icon: "mdi:water-percent"

value_template: "{{ value_json.humidity }}"

unique_id: "zm1_你的M1 mac地址_hum"

- name: "zm1_你的M1 mac地址_pm25"

state_topic: "device/zm1/你的M1 mac地址/sensor"

unit_of_measurement: "μg/m³"

icon: "mdi:blur"

value_template: "{{ value_json.PM25 }}"

unique_id: "zm1_你的M1 mac地址_pm25"

- name: "zm1_你的M1 mac地址_hcho"

state_topic: "device/zm1/你的M1 mac地址/sensor"

unit_of_measurement: "mg/m³"

icon: "mdi:chemical-weapon"

value_template: "{{ value_json.formaldehyde }}"

unique_id: "zm1_你的M1 mac地址_hcho"

# 灯光（亮度控制）部分

light:

- name: "zm1_你的M1 mac地址_brightness"

schema: template

command_topic: "device/zm1/你的M1 mac地址/set"

state_topic: "device/zm1/你的M1 mac地址/state"

command_on_template: >

{"mac": "你的M1 mac地址"

{%- if brightness is defined -%}

, "brightness": {{ ((brightness-1) / 64 )|int +1 }}

{%- else -%}

, "brightness": 4

{%- endif -%}

}

command_off_template: '{"mac": "你的M1 mac地址", "brightness": 0}'

state_template: >

{%- if value_json.brightness == 0 -%}

off

{%- else -%}

on

{%- endif -%}

brightness_template: >

{%- if value_json.brightness is defined -%}

{{ ( value_json.brightness * 64 )|int }}

{%- endif -%}

unique_id: "zm1_你的M1 mac地址_light"

# 自定义实体名称 (保持不变)

homeassistant:

customize:

light.zm1_你的M1 mac地址_brightness:

friendly_name: "悟空M1 亮度"

sensor.zm1_你的M1 mac地址_temperature:

friendly_name: "悟空M1 温度"

sensor.zm1_你的M1 mac地址_humidity:

friendly_name: "悟空M1 湿度"

sensor.zm1_你的M1 mac地址_pm25:

friendly_name: "悟空M1 PM2.5"

sensor.zm1_你的M1 mac地址_hcho:

friendly_name: "悟空M1 甲醛"

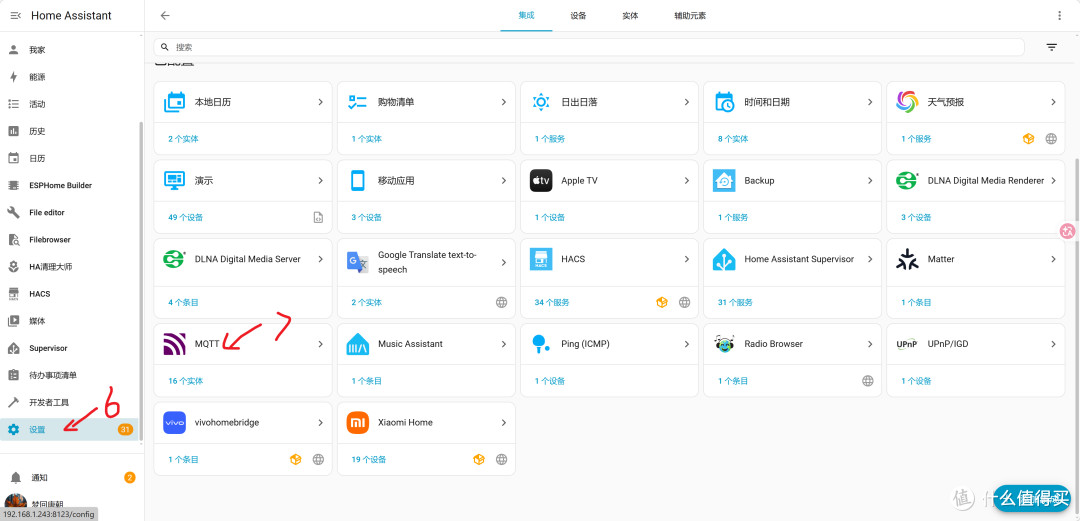

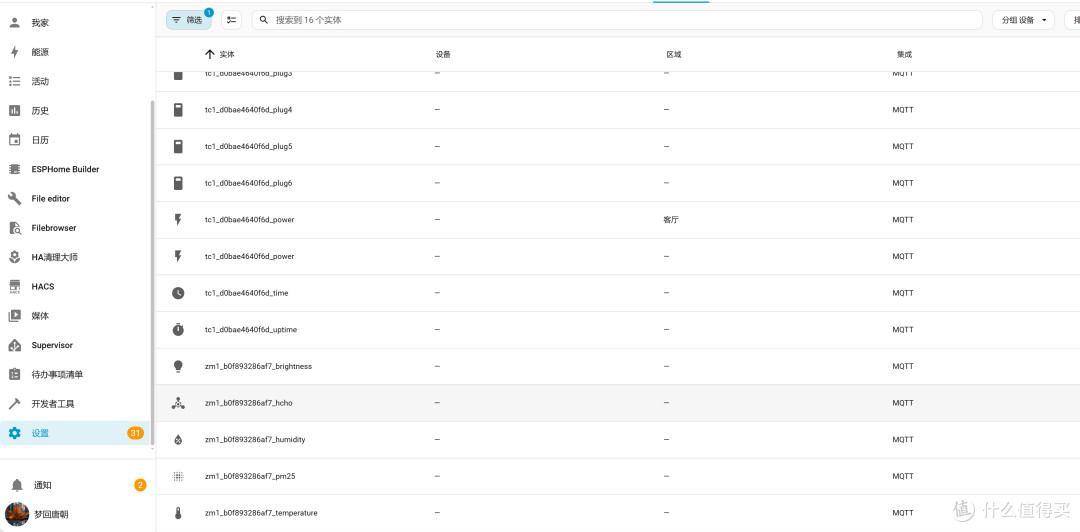

此时你的HA里面的MQTT就会发现M1

最后就是添加前端卡片：

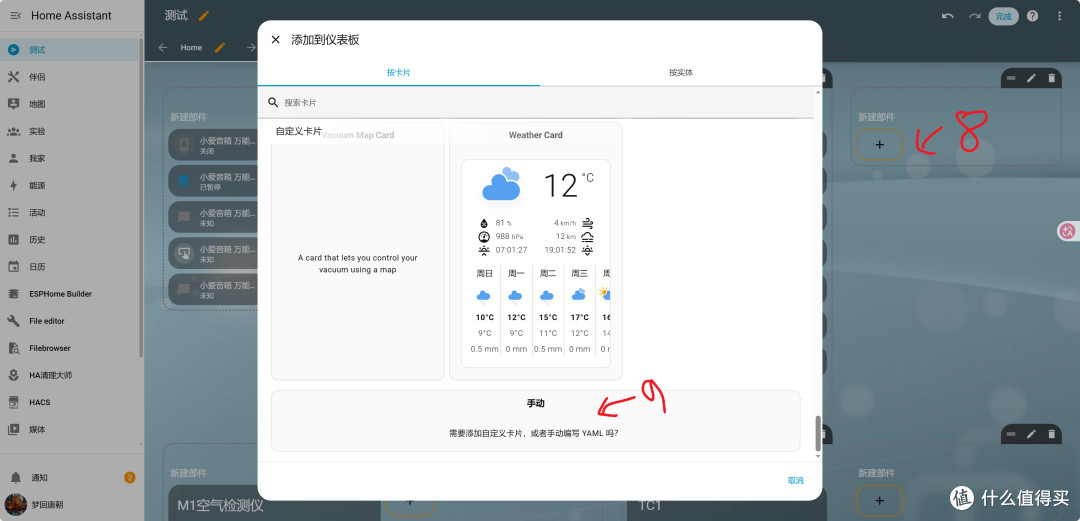

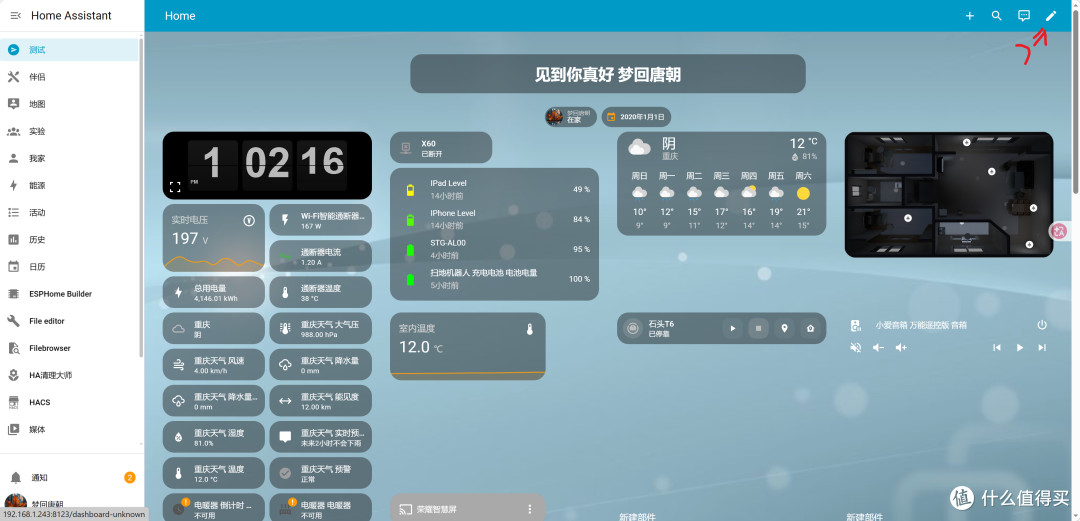

回到HA主页面在你的仪表盘里面点编辑选择添加新部件：

滑倒最下面选择手动

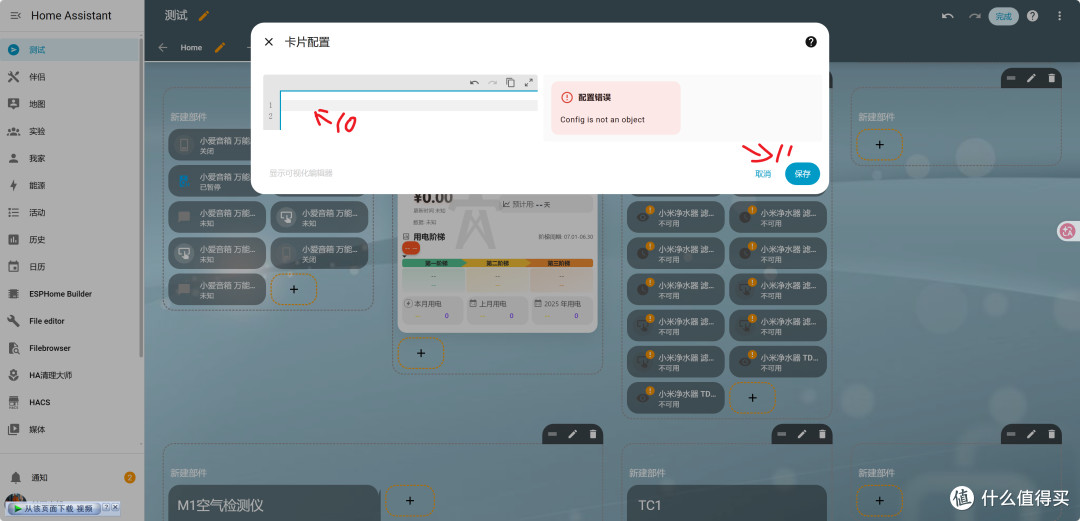

在卡片配置页面输入以下代码：

type: custom:swipe-card

parmameters:

loop: true

effect: coverflow

cards:

- type: custom:stack-in-card

title: M1空气检测仪

mode: vertical

cards:

- type: horizontal-stack

cards:

- type: custom:mod-card

card:

type: picture

image: /local/UI/m1.jpg

card_mod: null

style: |

ha-card {

/* Set padding of card */

padding: 0px 0px 0px 0px;

/* Move card up to match header card */

--ha-card-border-radius: 0px;

margin-left: 0px;

margin-right: 0px;

margin-bottom: 0px;

- type: custom:mushroom-entity-card

entity: sensor.zm1_b0f893286af7_temperature

name: 温度

layout: vertical

icon: mdi:thermometer

icon_color: green

- type: custom:mushroom-entity-card

entity: sensor.zm1_b0f893286af7_humidity

name: 湿度

layout: vertical

icon: mdi:water-percent

icon_color: blue

- type: horizontal-stack

cards:

- type: custom:mushroom-entity-card

entity: sensor.zm1_b0f893286af7_pm25

name: PM2.5

layout: vertical

icon: mdi:blur

icon_color: yellow

- type: custom:mushroom-entity-card

entity: sensor.zm1_b0f893286af7_hcho

name: 甲醛

layout: vertical

icon: mdi:chemical-weapon

icon_color: purple

- type: custom:stack-in-card

title: M1亮度

mode: vertical

cards:

- type: custom:mushroom-light-card

entity: light.zm1_b0f893286af7_brightness

use_light_color: false

show_brightness_control: true

show_color_control: false

show_color_temp_control: false

icon_color: light-green

icon: mdi:lightbulb-night-outline

layout: vertical

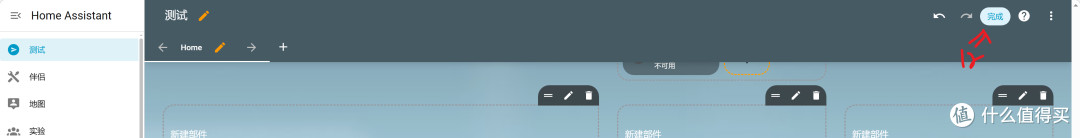

记得点保存然后点击完成

swipe-card这个卡片需在HACS里面提前下载

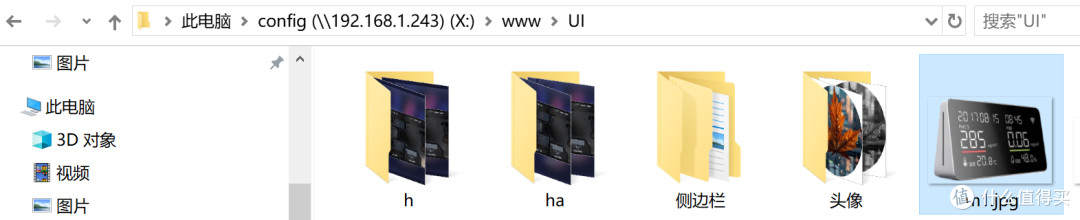

m1.jpg图片需放到HA的配置文件夹里面www文件夹下UI文件夹里面
